Introduction to the Second Half of This Course

In the first half of the course, we covered three discrete classes of theory:

1. Behaviorism,
2. Social Cognitive, and
3. Constructivism.

The content is organized differently in this second half of the course. The content we cover falls under the single heading of cognitive theories of learning. Not all cognitive theorists are the same, however, as different theories tend to emphasize different components, or dimensions, of cognition. The components we will cover are:

• knowledge
• strategies
• metacognition
• motivation

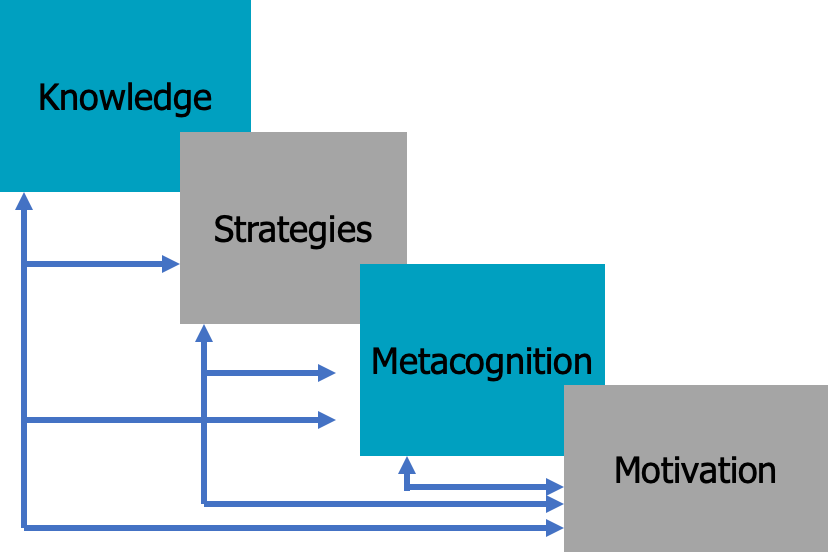

As you can see from the syllabus, these components are each covered within separate units. But, to understand how cognitive theories explain learning, you have to understand each of these components in relation to one another. Figure 4.1 shows a graphic depiction of that relationship. It is a depiction of how the topics of knowledge, strategies, metacognition, and motivation are related to one another. Although we can cover each of these topics independently, they all act to influence one another. High quality learning requires the interaction of all of these parts.



As you can see, each component is in its own box; but, the double-sided arrows indicate that each component interacts with and is influenced by other components. For instance, the two-sided arrow running between knowledge and strategies indicates that knowledge influences strategy use and strategy use influences knowledge. I refer to this as a generic model of self-regulated learning. It captures self-regulated learning because these components explain how a learner is able to control and direct their own learning activities. It is generic because this model does not adhere to any one theorist’s specific model of self-regulation. Rather, our generic model covers the major components that are included in most cognitively-based, self-regulated learning models and allows us to think about how these components are related to one another.

To think about the importance of understanding the interactive relationships between components of self-regulation consider the following. First, we will learn that a student’s ability to remember and use knowledge is influenced by how that declarative knowledge is organized in the learner’s head. Later, when we cover strategies, you will see that a learning strategy can be applied to new knowledge that is learned. To really understand these points, you will need to understand that the strategy a learner uses influences how that declarative knowledge is ultimately organized. If you do not think about these components in this interactive relationship, you will miss much of what is important in this second half of the course.

We will begin this second half by covering the information processing system. Figure 4.2 provides you with a graphic depiction of that system, which you can use to organize your knowledge throughout this section. Your textbook describes three different models of memory (i.e., information processing):

1. two-store
2. levels of processing
3. activation

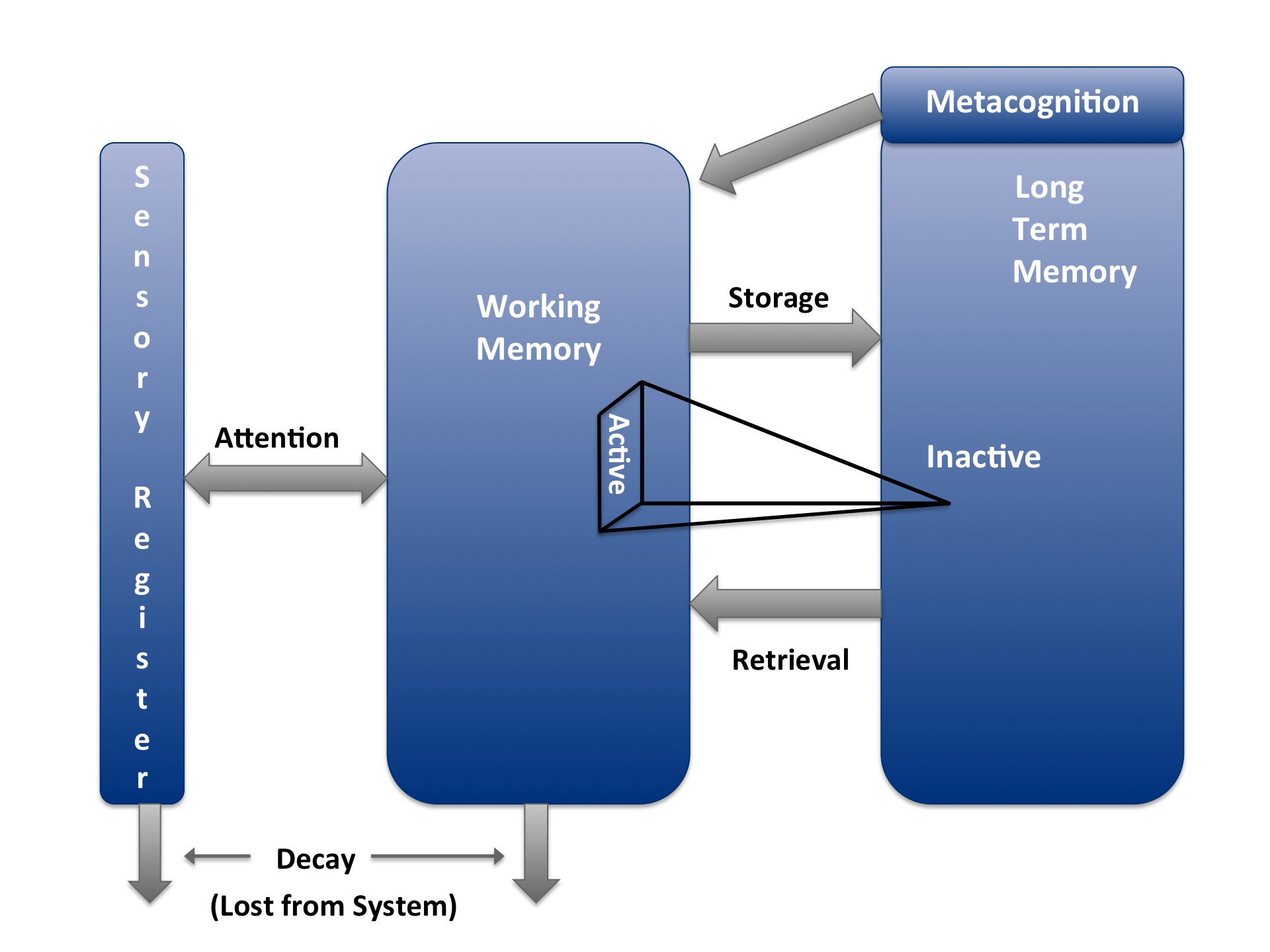

Figure 4.2 is a depiction of the information processing system (IPS). This depiction uses a series of boxes and arrows; boxes indicate structures of IPS while arrows indicate processes. The first box, which appears on the left-most side of the figure, indicates the Sensory Register. Two arrows come out of the Sensory Register. One arrow points down and out of the system. This arrow indicates decay (information that is lost from the system). The second arrow runs between the Sensory Register and Working Memory (the next box). This arrow is labeled attention and indicates that information that a learner attends to can be brought from the Sensory Register to Working Memory (from the environment to awareness). The next box is Working Memory. Working Memory also has an arrow coming out and pointing downward. Consistent with Sensory Register, this box is labeled decay and indicates information that is lost from the system. Another arrow points out of Working Memory heading toward the next box, Long Term Memory. This arrow is labeled storage and indicates information being transferred from Working Memory to be stored in Long Term Memory. The Long Term Memory box is next one shown. This box has an arrow pointing from it back toward Working Memory. This arrow is labeled retrieval and indicates information that is being brought from storage in Long Term Memory into awareness in Working Memory. Above the Long Term Memory box is a box labeled Metacognition. This box is located at the top of Long Term Memory, but inside of it, to indicate that Metacognitive knowledge is stored in Long Term Memory but has a special function in learning. There is also an arrow running form Metacognition to Working Memory to indicate that Metacognitive knowledge can also be retrieved into Working Memory. Finally, there is a three-dimensional triangle that begins in Long Term Memory (the top point) and ends in Working Memory. On the Long Term Memory side, the triangle is labeled inactive; on the Working Memory side, it is labeled active. This triangle indicates that knowledge is inactive when stored in Long Term Memory and active once it is in Working Memory.

Figure 4.2 depicts a model that is consistent with the two-store model and this is the base model that we will use for understanding how information processing works. You also need to realize though that we will incorporate principles from the alternative models as well. For instance, even though we use working memory and long term memory as our base model, in this class we will also take the position that the depth of processing matters and that knowledge held in memory changes activation states. Note, for example, the slight difference between the model depicted in our Figure 4.2 and the model depicted in Schunk’s Figure 5.4 (p. 180). The difference here is that our depiction shows inactive knowledge as being in Long Term Memory and active knowledge is in Working Memory. Essentially, this means that when knowledge is active (being thought about or worked on), that thinking is being done by the Working Memory system. This idea is further explained in the instructional videos.

The primary reason for understanding the information processing system is because this system provides the basic architecture of the cognitive system. Because the components of self-regulation have to operate within this system, the model of information processing tells you about the constraints and enhancements that these components operate under.

You can understand this by thinking about the analogy of a parking garage. Imagine that I have a parking garage and that garage has 500 parking spaces. The number of spaces constrains the number of cars that the garage can hold at any one time. Imagine also though, that the garage includes entrances and exits in four different locations. The design of these portals enhances my ability to manage the flow of cars in and out of the garage. Taken together, we can say that the architecture, how the garage is designed and integrated, affects how I can reasonably use that garage.

An example of how this architecture influences self-regulation can be shown by thinking again about strategies. One aspect of strategy use is that they are effortful; generally, a learner must exert cognitive effort to execute a strategy. As you study the information processing system, you will learn that "effort" means the expenditure of cognitive resources in working memory and these resources are limited. Putting this together, you can see that any strategy a learner can use must fit within the cognitive resource limitations of the information processing system.

In summary, the second half of the course begins with a presentation of the information processing system. Each component of our generic self-regulation learning model is addressed in the subsequent units. As you go through these, you will need to bear in mind that each component must operate within the architecture of the information processing system and that each component operates in interaction with the other components.

Your textbook explains the major principles associated with the information processing system. The two instructional videos that follow delve more deeply into characteristics of this system. These videos cover characteristics of working memory that help you to understand how this system works and how these characteristics relate to student learning.
